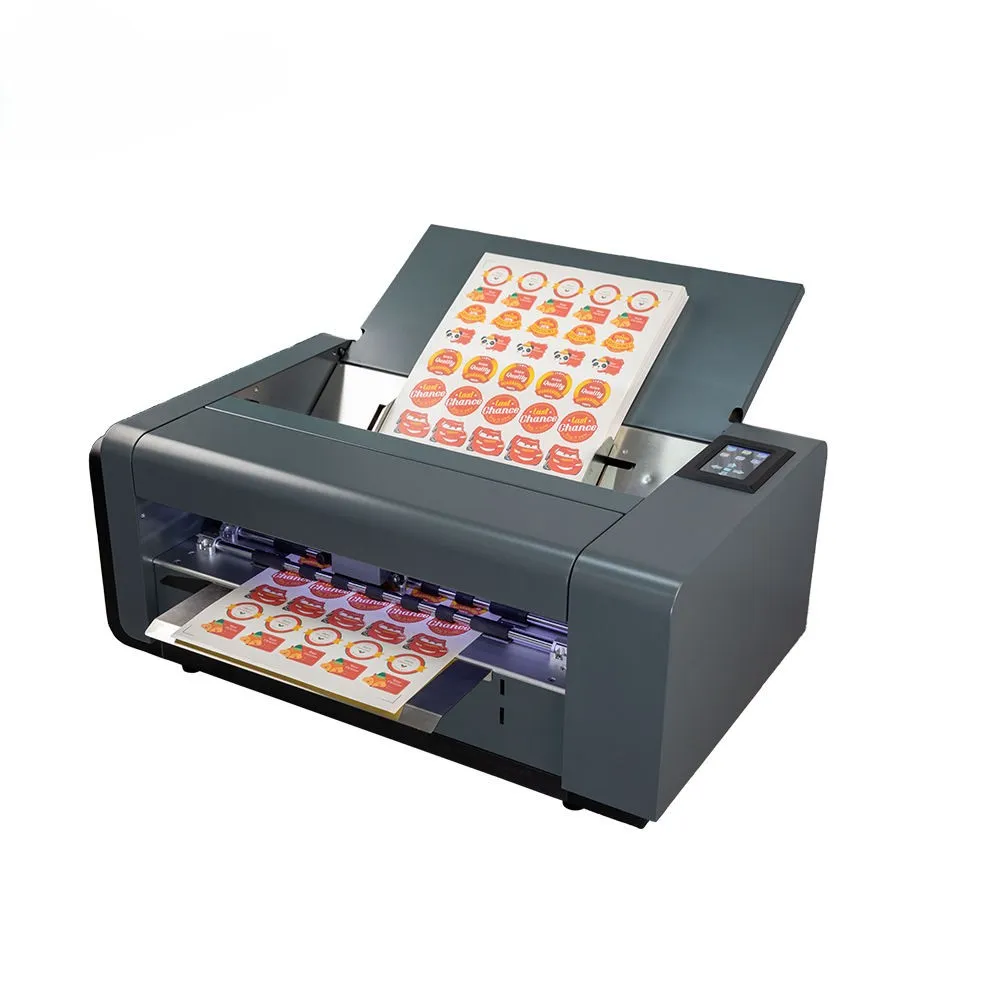

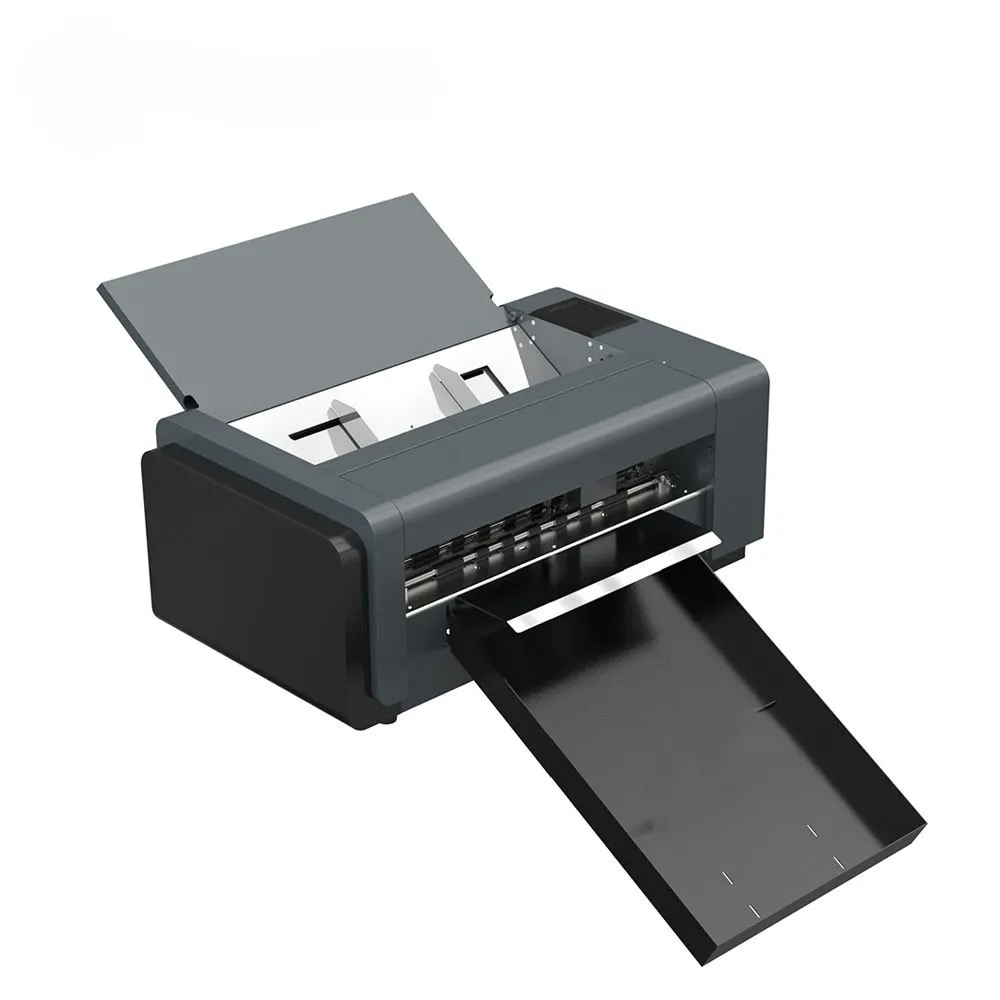

A3 MAX 4 High Speed Dual Head Auto-Feeder Cutting Plotter
- Powered by a robust servo motor, it achieves a maximum cutting speed of 1600 mm/s.
- Delivers exceptional accuracy with ±0.01 mm cutting precision and ±0.082 mm repeatability, ensuring consistently sharp, high-quality cuts.
- Features dual cutting and creasing heads, enabling simultaneous operations—ideal for packaging, folding cards, and layered designs.
- Built for commercial batch processing with capacity to auto-feed and cut 150–180 sheets
- Capable of handling 1,300 to 1,500 sheets per day, making it ideal for high-volume production environments and commercial cutting operations.
Product Description
Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.
Advanced usability features like multi-language support and multi-color LED
Includes a built-in stacking tray and auto-sheet feeder, allowing smooth loading and organized stacking of 150–180 sheets for continuous cutting.
Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.
Specifications
| Product | SKYCUT A3 Max 4 |
|---|---|
| Max Media Width | 340mm |
| Max Cutting Width | 340mm |
| Max Feeding Quantity | up to 180PCS |
| Motor | Servo Motor |
| Max Thickness | 400 GSM |
| CorelDRAW Support | Yes |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Moving Speed | 1600 mm/s |
| Max Cutting Speed | 1600 mm/s |
| Max Force | 2000g |
| Connector Interface | U-disk/WIFI/USB Cable |
| Power | < 100W |
| Working Environment | +5°C - +35°C |
| Packing Size | 730×330×330mm |
| Packing Gross Weight | appx 50kg |
Product Uses
High-Speed Auto Feeding System
Enables faster and more stable material feeding, perfect for continuous cutting tasks in high-volume production environments.
Double Row Rollers for Material Efficiency
Precisely designed rollers minimize material waste by maintaining uniform margins as small as 5mm on all four sides.
Large Full-Color Touchscreen Interface
Performs simultaneous cutting and creasing, perfect for packaging prototypes, invitation cards, folded boxes, and craft projects.
High-Quality Display with Enhanced Functionality
Offers clear visuals and access to advanced features, improving user experience and operational efficiency during extended use.
