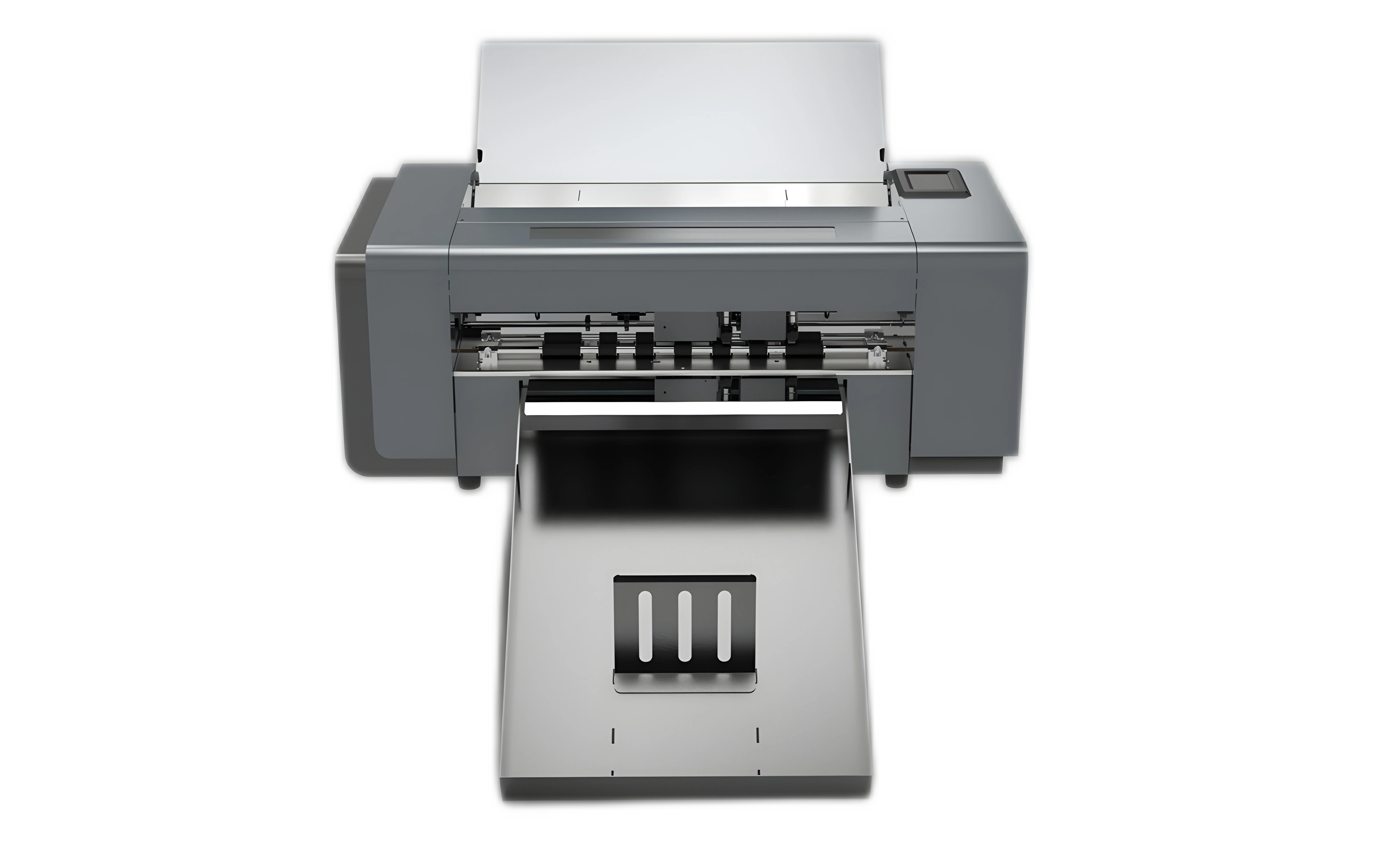

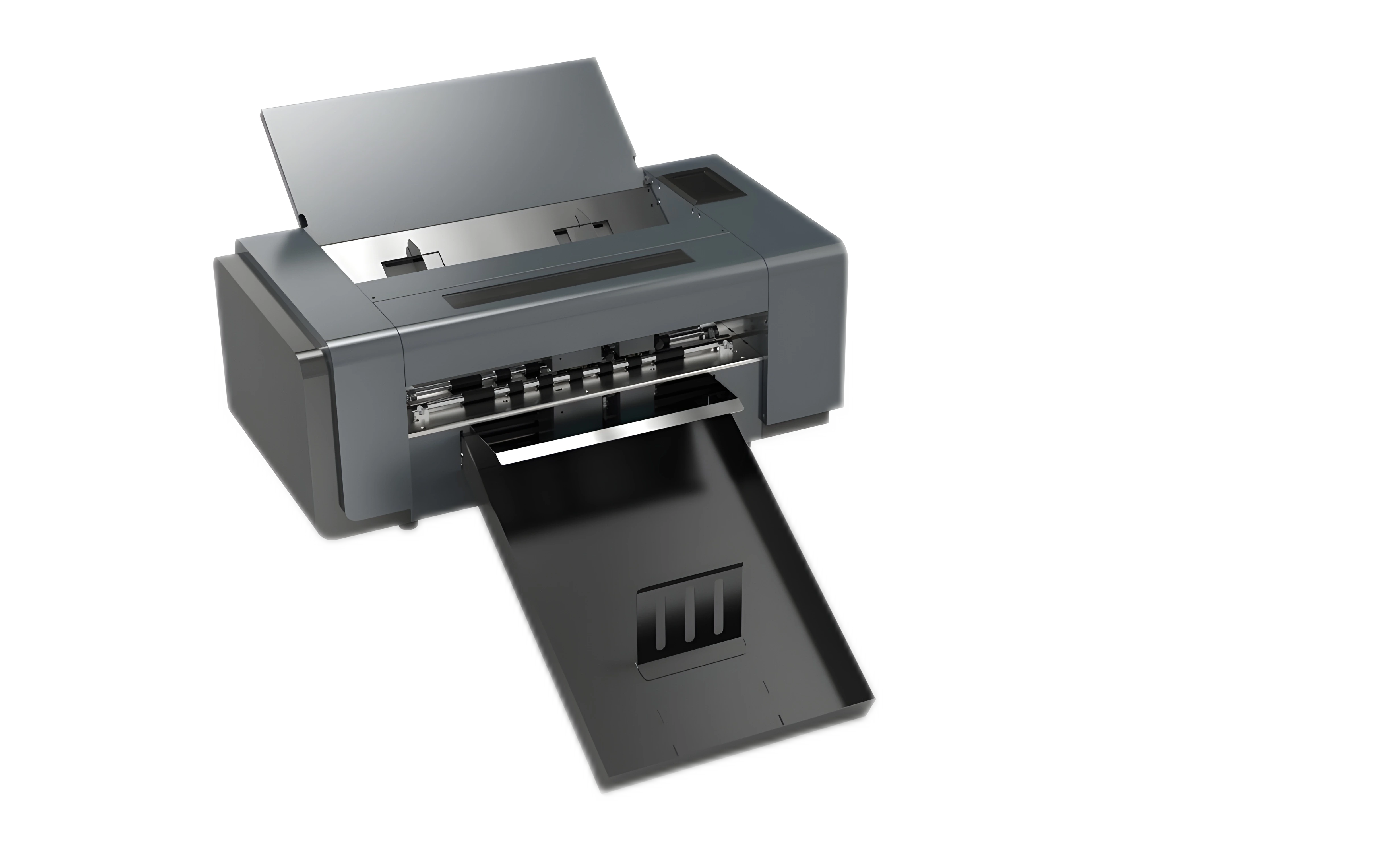

A3 Max 6 Double Head Cutting Plotter

In Stock
  • Dual cutting heads with a dual carriage system cut the same file at the same time, reducing job time by half.
  • Achieves a cutting speed of up to 1600 mm/s + 1600 mm/s for rapid processing of large batches, in half the time.
  • Delivers a powerful cutting force of 2000 g, suitable for materials like sticker sheets, cardstock, and laminated paper.
  • Offers high precision with ±0.01 mm accuracy and ±0.082 mm repeatability.
  • Capable of handling upwards of 2000 sheets per day, making it ideal for high-volume production environments and commercial cutting operations.s
PDF Docs

Guide & Install

Download PDF
Product Video

Demonstration & Setup

Watch Video

Product Description

Touch Display

Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.

Assembling Tray

Includes a built-in stacking tray and auto-sheet feeder, allowing smooth loading and organized stacking of 150–180 sheets for continuous cutting.

Cutting Demo

Delivers a powerful cutting force of up to 2000g, suitable for a wide range of materials including vinyl, cardstock, sticker sheets, and visiting cards

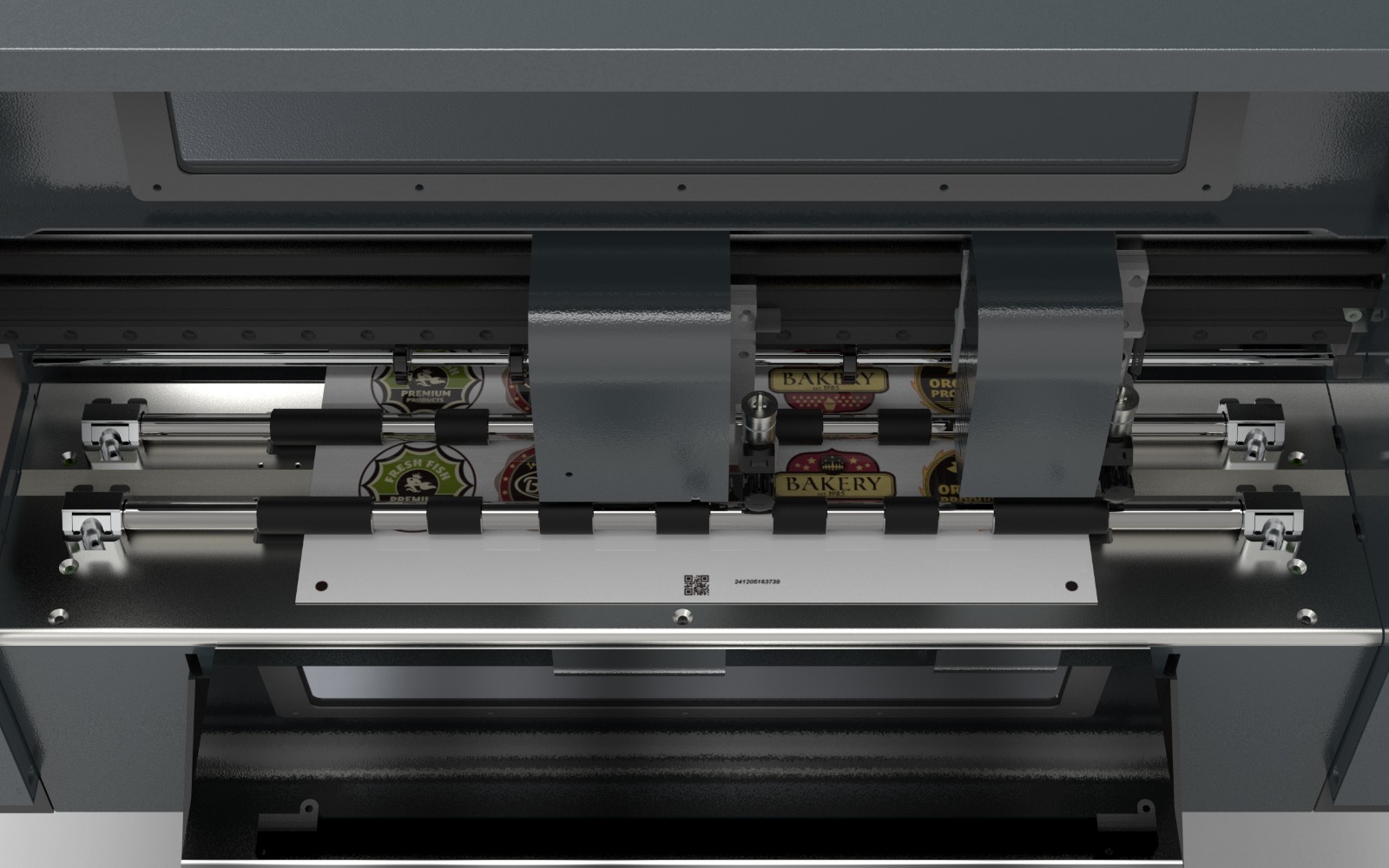

Dual Cutting Heads

Dual cutting heads with a dual carriage system work simultaneously to cut the same file in parallel, significantly reducing production time—often by up to 50%—while maintaining consistent accuracy and quality across every pass.

Specifications

Product SKYCUT A3 Max 6
Max Media Width 370mm
Max Cutting Width 350mm
Max Feeding Quantity up to 180PCS
Number of Tool Heads 2 Heads (1 tool holder for each Carriage)
Motor Servo Motor
Max Moving Speed 1600 mm/s
Max Cutting Speed 1600 mm/s
Max Force 2000g
Cutting Precision 0.01mm
Repeat Precision 0.082mm
Connector Interface U-disk/WIFI/USB Cable/Network cable
Power < 100W
Working Environment +5°C - +35°C
Packing Size 950x560x455mm
Packing Gross Weight appx 53 kg

Product Uses

f6090
High-Speed Auto Feeding System

Enables faster and more stable material feeding, perfect for continuous cutting tasks in high-volume production environments.

f6090
Double Row Rollers for Material Efficiency

Precisely designed rollers minimize material waste by maintaining uniform margins as small as 5mm on all four sides.

f6090
Dual Heads with a Dual Carriage

The dual cutting heads with a dual carriage system operate in parallel, each cutting the same file at a high speed of 1600 mm/s—delivering a combined performance boost that can reduce production time by up to 50%, all while ensuring precise and consistent output throughout the job.

f6090
High-Quality Display with Enhanced Functionality

Offers clear visuals and access to advanced features, improving user experience and operational efficiency during extended use.
