A3 MAX 7 Automatic Cutter | Auto Feeder Sheet Cutter
- Digital Drive Power – Digitally-driven motor with sine wave drive for cutting speed that frees you from the clock.
- 1800 mm/s High-Speed Cutting – Faster automatic cutter and die cutting machine output than earlier Skycut A3 Max / Skycut A3 Max 4 workflows.
- Perforation Cutting – Set bonding points (0.1 mm, adjustable) so parts stay attached until peel — clean sheet cutter runs without slowing speed.
- Vision Camera Contour – Auto contour following for accurate outline cuts on printed labels and sticker sheets.
Product Description
The SKYCUT A3 MAX 7 brings digital drive power to your finishing bench — a high-speed automatic cutter built for shops that already trust the Skycut A3 Max, Skycut A3 Max 4, Skycut A3max4, Skycut A3 Max 4 Pro, Skycut A3 Max 5, and Skycut A3 Max 6 series. A digitally-driven motor and sine wave drive deliver cutting speed that frees you from the clock — up to 1800 mm/s for stickers, labels, and paper sheets. Vision camera auto contour, touch-screen control, and perforation cutting make it a precise sheet cutting machine, label cutting machine, and light die cutting machine for short and mid runs. Use it as your next-step auto feeder / automatic feeding style production cutter in the Sky Cut A3 Max family from SKYCUT India at skycutindia.com.
Digital Drive Motor System
Digitally-driven motor plus sine wave drive — a substantial increase in die-cutting speed for this automatic cutter and sheet cutter.
High-Speed Cutting 1800 mm/s
Up to 1800 mm/s maximum cutting speed — boost production capacity versus earlier Skycut A3max4 Pro and Skycut A3 Max 5 Pro speed targets.
Perforation Cutting
Set bonding points (0.1 mm, adjustable) during cutting to prevent detached parts — stable sheet cutting machine jobs and easy residual removal afterward.
Vision Camera & Touch Screen
Auto contour following with a vision camera and touch-screen control — accurate outlines for every label cutting machine and industrial paper cutting machine batch.
Specifications
| Specification | SKYCUT A3 MAX 7 |
|---|---|
| Model | A3 MAX 7 |
| Maximum Material Width | 370 mm |
| Maximum Cutting Width | 360 mm |
| Positioning Method | Vision Camera (Auto Contour Following) |
| Control Method | Touch Screen |
| Motor | Digital Drive Motor System |
| Maximum Blade Pressure | 1000 g |
| Number of Tool Heads | 1 |
| Cutting Accuracy | ±0.01 mm |
| Repeatability / Repeat Accuracy | 0.082 mm |
| Power | 120 W |
| Maximum Cutting Speed | 1800 mm/s |
| Machine Dimensions | 768 × 455 × 332 mm |
| Automatic Blade Adjustment | Not Supported |

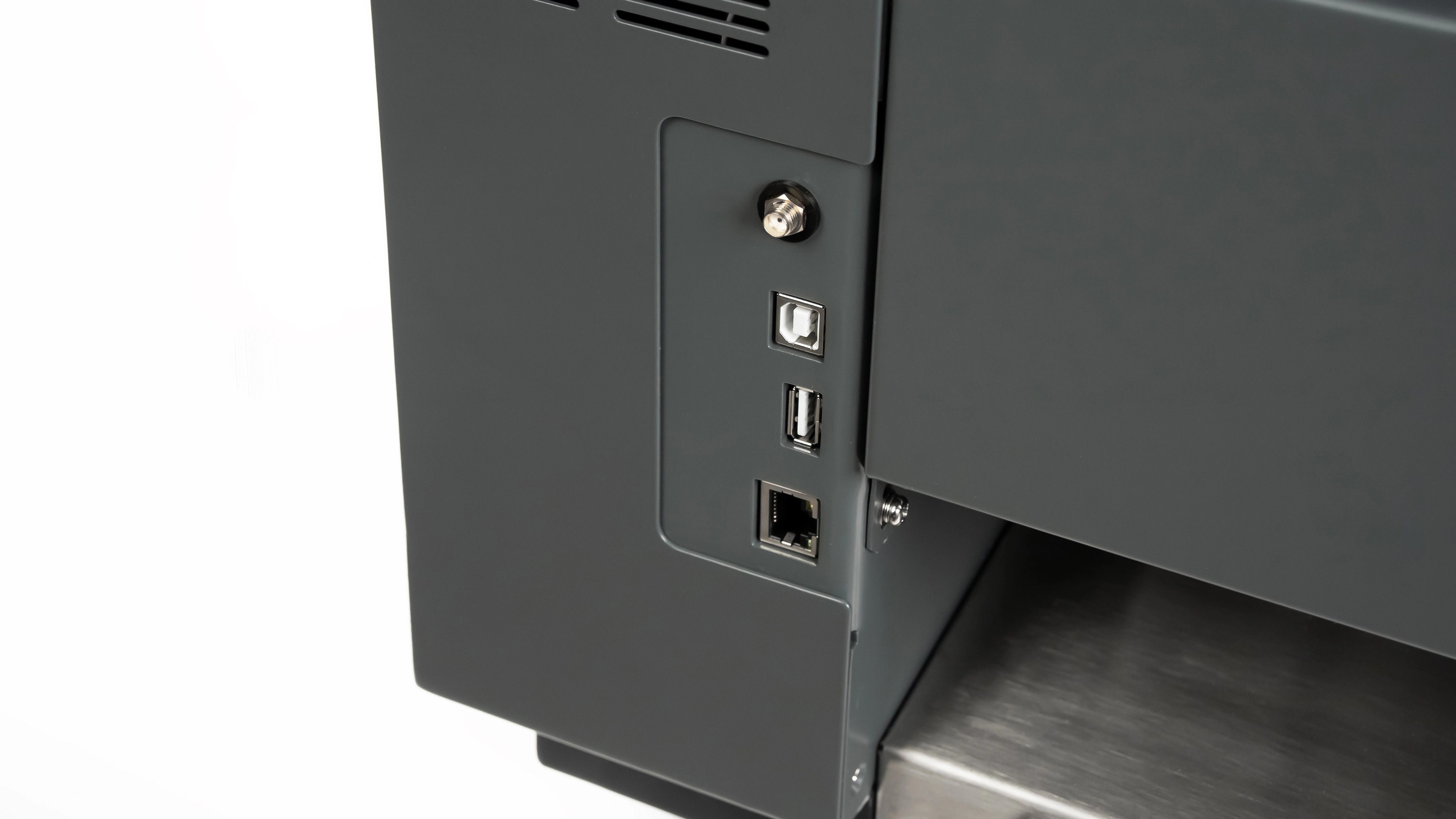

| Connection Method | Wi-Fi, USB, Ethernet Port |
| Operating Ambient Temperature | +5°C ~ +35°C |
Product Uses
One high-speed automatic cutter for the sticker, label, and paper finishing work your shop already runs on Skycut A3 Max 4 and Skycut A3 Max 6 lines.
Stickers & Decals
Kiss-cut and through-cut stickers at up to 1800 mm/s — a fast die cutting machine alternative for short and mid sticker runs.
Product & Shipping Labels
Product labels, barcode tags, and shipping labels — steady label cutting machine output with vision contour accuracy.
Cardstock & Paper Sheets
Paper and cardstock finishing on a compact sheet cutting machine / industrial paper cutting machine footprint (768 × 455 × 332 mm).
Perforated Parts & Kiss-Cut Sheets
Perforation bonding points keep parts in place until peel — cleaner auto feeding-style sheet handling on finished stacks.
Powered by digitally-driven motors and sine wave drive technology — significantly faster die-cutting speed to boost your production capacity on the SKYCUT A3 MAX 7.
Digitally-Driven Motor
Digital Drive Motor System combines a digitally-driven motor with sine wave drive for a substantial increase in die-cutting speed.
High-Speed Cutting
Maximum cutting speed 1800 mm/s with ±0.01 mm accuracy and 0.082 mm repeatability — production-ready automatic cutter precision.
Perforation Cutting
During cutting, set bonding points (0.1 mm, adjustable) to prevent detached parts, keep speed stable, and remove residual easily afterward.
Starter kit for your A3 MAX 7 sheet cutter — blades, connectivity, and setup tools from SKYCUT India.
Cutting Blades
Precision blades for kiss-cut labels and full-cut outlines on your automatic cutter.
Multi-Function Cable
USB and network connectivity for Wi-Fi / USB / Ethernet control of your label cutting machine.
Drawing Kit & Pen Holder
Test registration marks and outlines before a full sheet cutting machine production batch.
Support & Setup Kit
Ready-to-run hardware for this Skycut A3 / A3 MAX 7 industrial paper cutting machine workstation.
