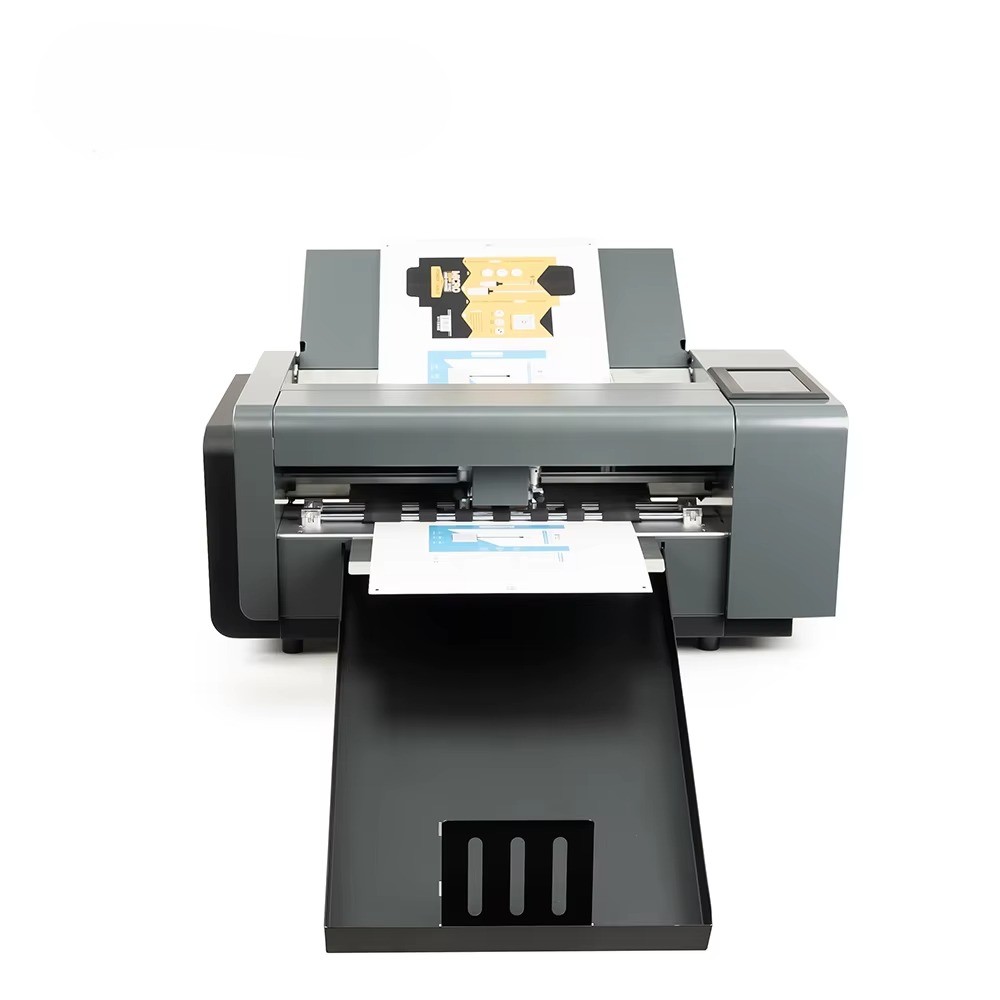

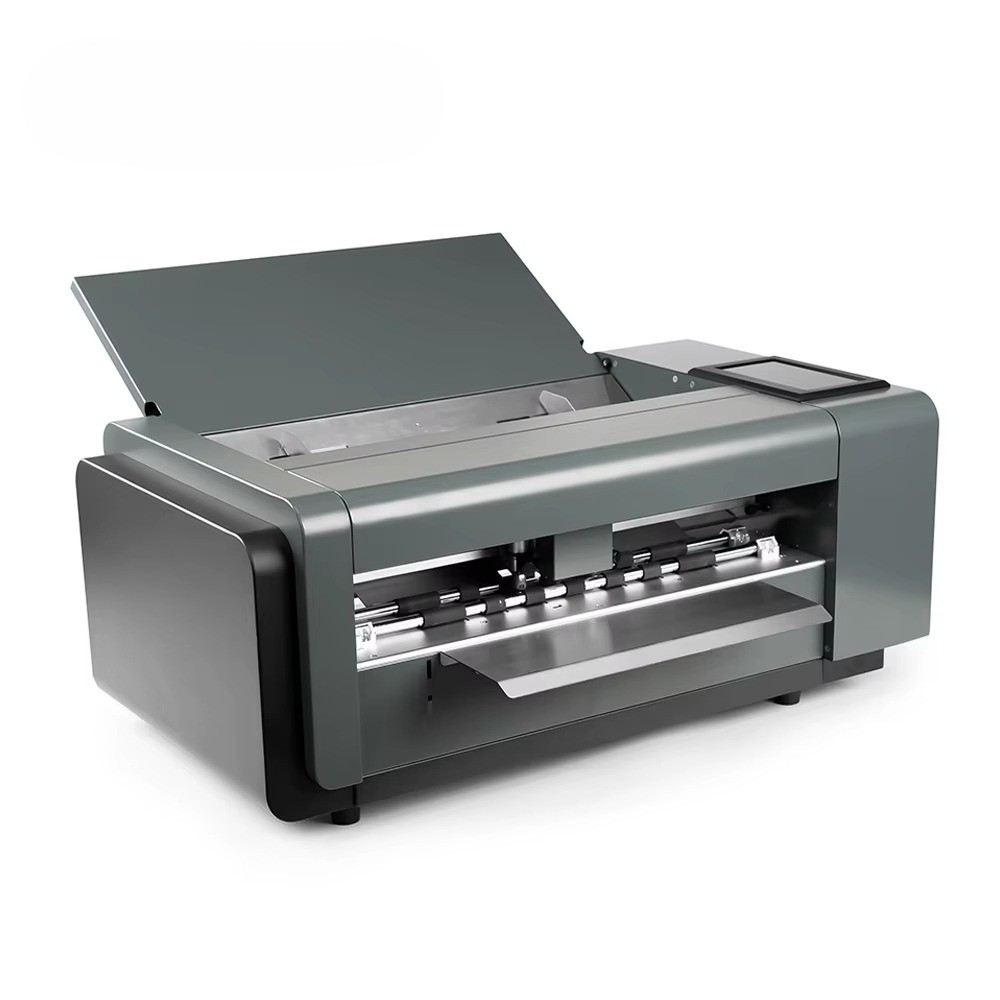

A3 MAX 7-Pro Box Making Plotter | Wheel Creasing Auto Cutter
- Wheel-Based Creasing System – Innovative wheel creasing for clean fold lines on carton samples and packaging dielines.
- Auto-Adjusting Tool Holder – Automatic blade adjustment supported — smart dual-head control for cut and crease in one pass.
- Die-Cutting + Creasing Together – Two functions, one machine: get die-cutting and creasing done simultaneously on this box making plotter.
- Digital Drive 1800 mm/s – Digitally-driven motor with sine wave drive for high-speed automatic cutter and die cutting machine output.
Product Description
Meet the future of carton sampling with the SKYCUT A3 MAX 7-Pro — where innovative wheel creasing meets auto-adjust tool heads. This dual-head automatic cutter combines a wheel-based creasing system with an auto-adjusting tool holder so die-cutting and creasing happen simultaneously. Digital drive power reaches up to 1800 mm/s, with vision camera contour, perforation cutting, and touch-screen control for packaging samples, folding cartons, labels, and stickers. Built for shops that already run Skycut A3 Max, Skycut A3 Max 4, Skycut A3max4, Skycut A3 Max 4 Pro, Skycut A3 Max 5, Skycut A3 Max 5 Pro, and Skycut A3 Max 6 — a smarter box making plotter, sheet cutting machine, and label cutting machine from SKYCUT India at skycutindia.com.
Wheel Creasing System
Wheel-based creasing scores clean fold lines for carton samples — a true box making plotter and packaging sample station in one.
Auto-Adjust Tool Heads
Two tool heads with automatic blade adjustment supported — L: 2000 g / R: 1000 g for cut and crease on this automatic cutter.
Cut & Crease Together
Two functions, one machine — die-cutting and creasing done simultaneously for unmatched efficiency on every die cutting machine job.
Digital Drive 1800 mm/s
Digitally-driven motor with sine wave drive — substantial speed gain versus earlier Skycut A3max4 Pro and Sky Cut A3 Max finishing lines.
Specifications
| Specification | SKYCUT A3 MAX 7-Pro |
|---|---|
| Model | A3 MAX 7-Pro |
| Maximum Material Width | 370 mm |
| Maximum Cutting Width | 350 mm |
| Positioning Method | Vision Camera (Auto Contour Following) |
| Control Method | Touch Screen |
| Motor | Digital Drive Motor System |
| Maximum Blade Pressure | L: 2000 g · R: 1000 g |
| Number of Tool Heads | 2 |
| Cutting Accuracy | ±0.01 mm |
| Repeatability / Repeat Accuracy | 0.082 mm |
| Power | 135 W |
| Maximum Cutting Speed | 1800 mm/s |
| Machine Dimensions | 798 × 455 × 332 mm |
| Automatic Blade Adjustment | Supported |
| Connection Method | Wi-Fi, USB, Ethernet Port |
| Operating Ambient Temperature | +5°C ~ +35°C |
One box making plotter for carton sampling, packaging dielines, labels, and sticker finishing — built for shops upgrading from Skycut A3 Max 4 and Skycut A3 Max 6.
Carton Sampling & Dielines
Folding carton prototypes and packaging samples — cut and wheel-crease fold lines without switching machines on this box making plotter.
Mailers & Product Sleeves
Mailer boxes, tuck-end cartons, and product sleeves — dual-head cut and crease for fast packaging proofs.

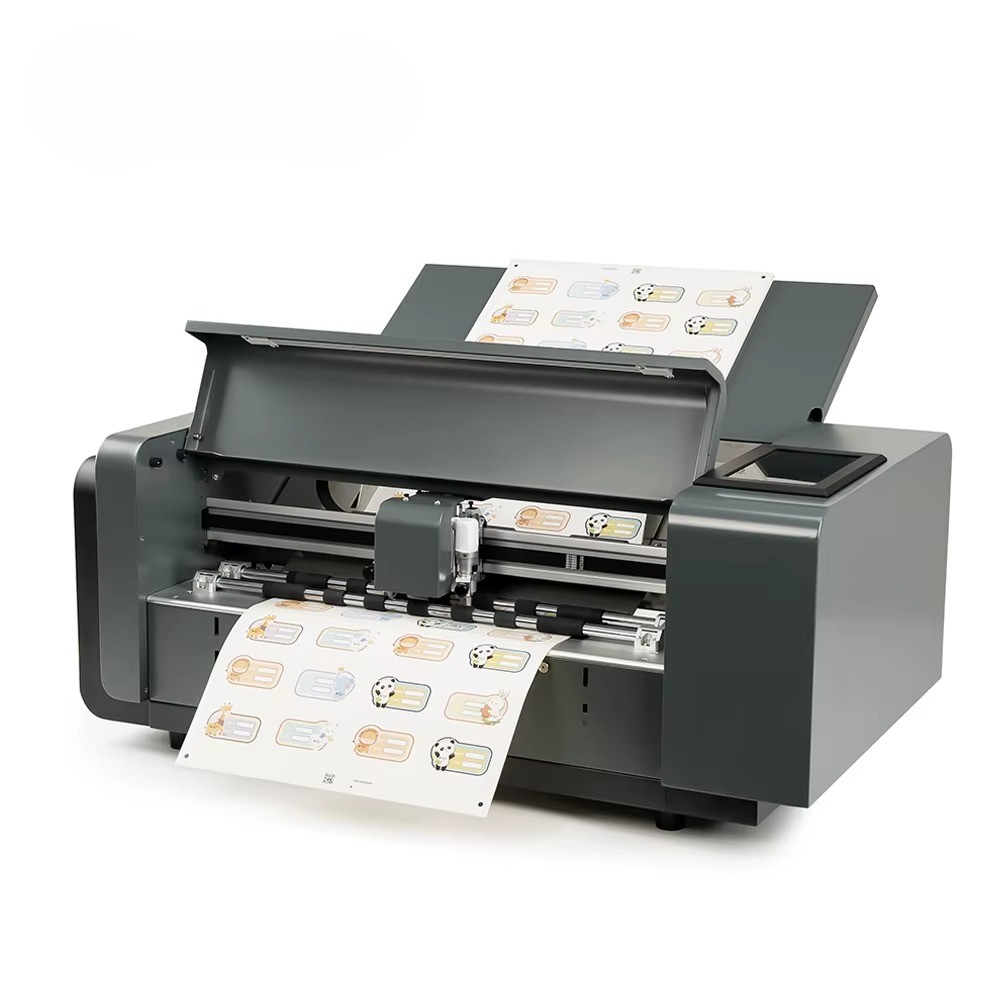

Labels & Stickers
Product labels and vinyl stickers with vision contour — a precise label cutting machine and sheet cutting machine in the same footprint.
Perforated Sheet Finishing
Perforation bonding points keep parts in place until peel — cleaner stacks for auto feeder / automatic feeding style production flow.
Wheel creasing + auto-blade adjustment — two functions, one machine. Experience unmatched efficiency with intuitive, smart operation on the A3 MAX 7-Pro.
Digital Drive Motor System
Combining a digitally-driven motor with sine wave drive for a substantial increase in die-cutting speed on this industrial paper cutting machine.
Perforation Cutting
During cutting, set bonding points (0.1 mm, adjustable) to prevent detached parts, keep speed stable, and remove residual easily afterward.

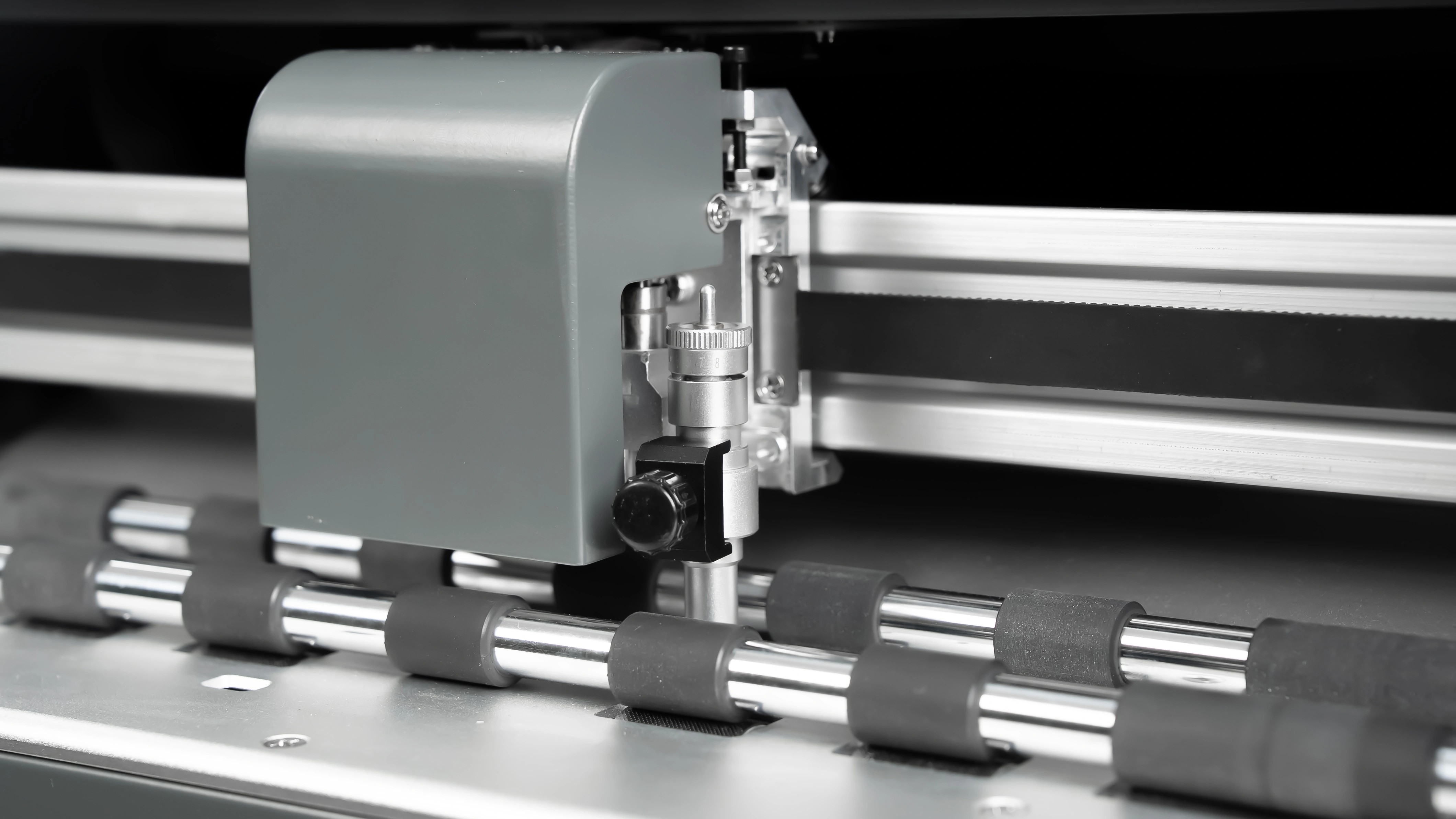

Auto-Adjust Tool Holder
Automatic blade adjustment supported with dual tool heads — smart pressure control (L: 2000 g / R: 1000 g) for cut and crease together.
Product Uses
Full kit for your A3 MAX 7-Pro box making plotter — blades, creasing support, connectivity, and setup tools from SKYCUT India.
Dual-Head Cutting Blades
Blades for kiss-cut panels and full-cut carton outlines on your automatic cutter.
Multi-Function Cable
USB and network connectivity for Wi-Fi / USB / Ethernet control of your label cutting machine.
Drawing Kit & Pen Holder
Test dielines and registration marks before a full carton sampling batch.
Wheel Creasing & Auto-Adjust Kit
Support for wheel creasing and auto-adjust tool heads on this box making plotter / sheet cutter.
