SKYCUT FR6090 Flatbed Cutting Plotter | Flatbed Cutter for Packaging & Box Making
- 2200W Vacuum Suction Platform – Industrial vacuum table holds media flat during cutting — stable, accurate runs on this flatbed cutting plotter without a separate cutting mat.
- Dual-Head Gantry System – Two tool heads cut, crease, kiss-cut, and score in one workflow — faster box making plotter output for packaging samples and prototypes.
- 600 × 900 mm Cutting Area – Large Flatbed Cutting Machine format for folding cartons, gift boxes, display materials, and wide sticker sheets.
- 2000g Force & 800 mm/s Speed – High cutting force with ±0.01 mm repeat accuracy — clean edges on cardstock, corrugated board, vinyl, PVC, and foam.
Product Description
Professional flatbed cutting plotter for packaging, labels, printing & prototype making
The SKYCUT FR6090 Digital Flatbed Cutting Plotter is a high-performance flatbed cutting machine built for shops that need precision, speed, and real versatility. A 2200W vacuum suction platform keeps materials locked in place, while a dual-head gantry and built-in CCD camera handle cut, crease, kiss-cut, and contour work in one setup. Whether you produce packaging prototypes, folding cartons, magnetic sheets, labels, stickers, invitation cards, gift boxes, or display graphics, the FR6090 delivers clean, accurate, production-ready results. A complete box making plotter and sticker cutting machine for packaging firms, print shops, agencies, and prototype studios — from SKYCUT India at skycutindia.com.

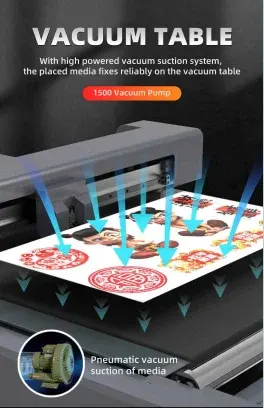

2200W Vacuum Suction Table
Powerful vacuum hold-down stops sheets from shifting — even lightweight vinyl and flexible media cut accurately on this flatbed cutting plotter with no cutting mat required.
Dual-Head Gantry System
Two tool heads work in one workflow — cut, crease, half-cut, and full-cut without constant tool changes. A practical box making plotter for packaging sample making.
CCD Camera Contour Cutting
The built-in camera finds registration marks and follows printed graphics — reliable contour cutting for labels, die-cut stickers, and printed packaging on this digital flatbed cutting plotter.
Wide Material Compatibility
Cuts cardstock, kraft, corrugated paper, PVC, magnetic sheets, vinyl, foam board, PET, PP, and more — one Flatbed Cutting Machine for printing, packaging, and craft production.
Camera for Auto Contour Cutting
Built-in CCD camera for Auto Print & Cut — accurate contour finishing on printed labels and packaging.

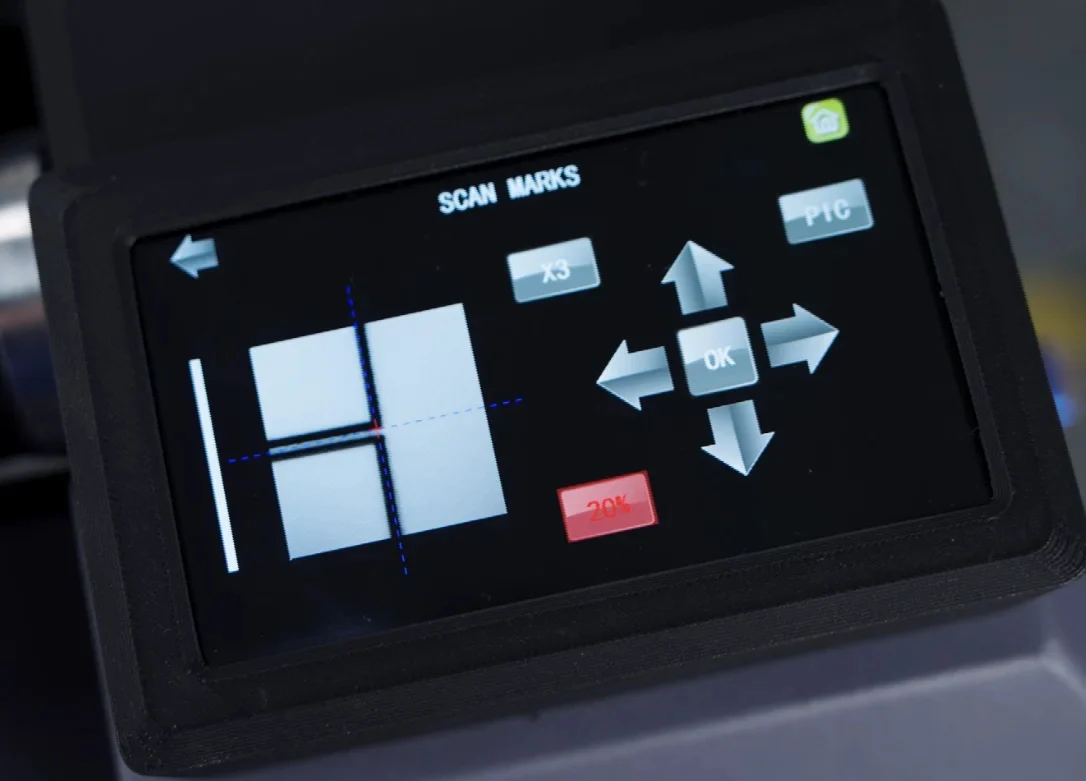

Large Touch Screen Menu
Large HD touchscreen for quick job setup — simple control for everyday production on the shop floor.

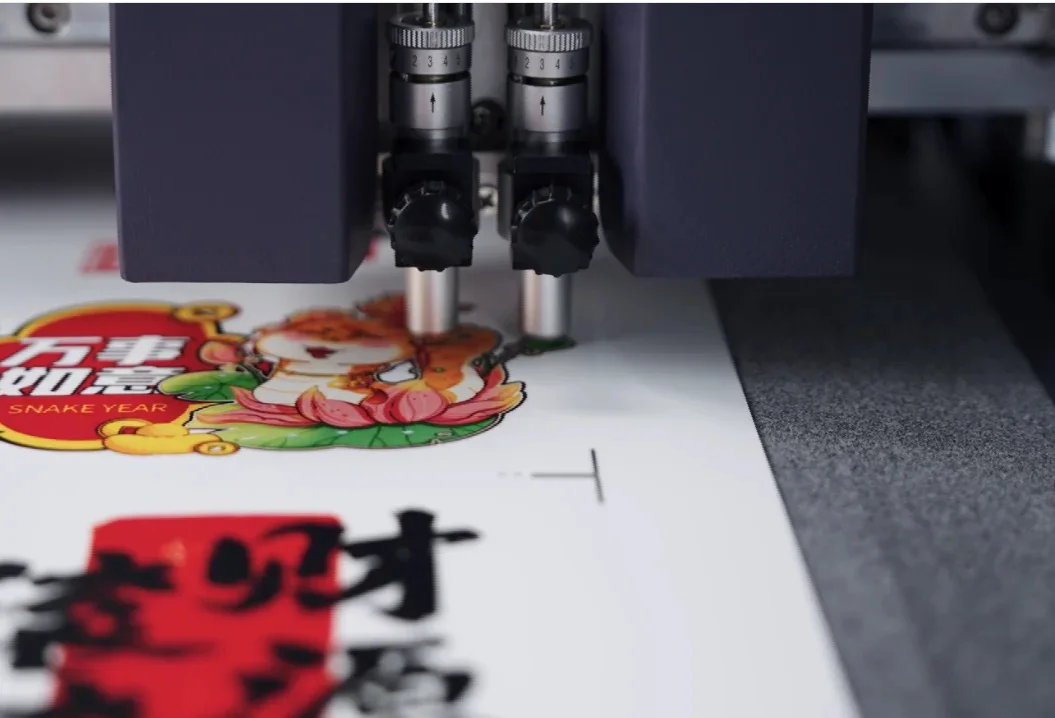

Dual Independent Head
Dual-head gantry runs multiple finishing steps at once — great for box making and packaging prototypes.
Multi-interface
Works with PC, Wi-Fi, USB flash drive, and LAN — easy to plug into your existing print workflow.
Specifications
| Product | FR6090 |
|---|---|
| Max Material Size | 630 × 1200 mm |
| Max Cutting Size | 600 × 900 mm |
| X and Y-axis Working Motor | DC Stepper Motor |
| Number of Heads | 2 No |
| Max Cutting Speed | 800 mm/s |
| Control Panel | 5 inch Touch Screen |
| Max Force | 2000 g |
| Position Mark Type | L Shape, Dot, QR |
| Connector Interface | USB / WiFi / Ethernet |
| Voltage | 110V / 220V |
| Cutting Precision | 0.01 mm |
| Dimension (L × W × H) | 770 × 1000 × 980 mm |
| Weight | 190 kg |
Product Uses
One flatbed cutting plotter for the sample work, short runs, and finishing jobs your business handles every week.
Packaging & Box Making
Folding carton prototypes, product box samples, retail packaging, and gift box mock-ups — a trusted box making plotter for packaging manufacturers and design studios.
Labels, Stickers & Print Finishing
Die-cut stickers, packaging labels, sheet cutting, and kiss-cut finishing — solid sticker cutting machine and label cutting performance for print shops.
Signage & Display Graphics
POP displays, exhibition graphics, promotional materials, and branding panels — versatile flatbed cutting machine work for advertising agencies and sign companies.
Cards, Magnets & Crafts
Invitation cards, greeting cards, refrigerator magnets, magnetic sheets, and custom paper crafts — precise cutting for craft businesses and custom producers.
Ready-to-run kit for your SKYCUT FR6090 — blades, creasing tools, and connectivity from SKYCUT India.
Dual-Head Angle Blades
45° and 60° blades for kiss-cut stickers and full-cut packaging panels on your sticker cutting machine.
Multi-Function Cable
USB, LAN, and Wi-Fi connectivity for design software and shop-floor control of your flatbed cutting plotter.
Drawing Kit & Pen Holder
Plot test layouts and registration marks before a full packaging or sticker production batch.
Creasing Tool & Tool Holders
Creasing head for fold lines on cartons and gift boxes — cut and crease on one box making plotter setup.
