Skycut VH-24 Servo Motor
- Cuts with up to 2000 g force, perfect for radium and retro films.
- Offers cutting speeds up to 1200 mm/s for fast production.
- Delivers ±0.01 mm precision for clean, accurate results.
- Supports a max cutting width of 610 mm for large designs.
- Features a servo motor for smooth and quiet operation.
Product Description

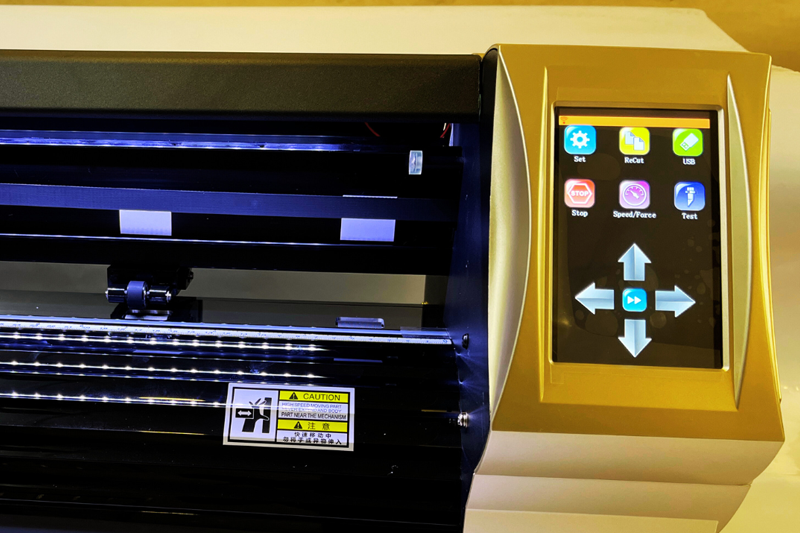

Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.
For long-lasting durability, this wide-format cutting plotter features a robust, industrial-grade metal body.
The SKYCUT VH-24 delivers a powerful cutting force of up to 2000g, making it ideal for a wide range of materials including vinyl, cardstock, sticker sheets, visiting cards, and radium (retro) films.
Advanced usability features like multi-language support and multi-color LED indicators, enhancing visibility in low-light environments and improving workflow clarity.
Specifications
| Product | SKYCUT VH-24 |
|---|---|
| Max Media Width | 720mm |
| Max Cutting Width | 610mm |
| Motor | High Speed Servo Motor |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Moving Speed | 1200 mm/s |
| Max Cutting Speed | 1200 mm/s |
| Max Force | 2000g |
| Connector Interface | U-disk / WIFI / USB Cable |
| Power | < 100W |
| Working Environment | +5°C - +35°C |
| Packing Size | 730×330×330mm |
| Packing Gross Weight | appx 22kg |
Product Uses
Cutting Blades
We offer a variety of blade angles—30°, 45°, and 60°—to suit different types of cutting needs, from fine details to thick or large materials.
Creasing Tools
Creasing tools can be used with the VH series, allowing for added functionality when needed, even though the machine features a single head.
Multi-function Cables
All Skycut products come equipped with essential cables, including USB cables, power cables, and adapters, tailored to each model’s power requirements and specifications.
Drawing Pen Kit with Mat
Skycut provides a drawing pen kit along with a cutting mat to ensure better grip and precise cutting. The VH series includes one drawing pen and a cutting mat for enhanced functionality.
