Skycut VH-48 Servo Motor
- Cuts with up to 2000 g force, perfect for radium and retro films.
- Offers cutting speeds up to 1200 mm/s for fast production.
- Delivers ±0.01 mm precision for clean, accurate results.
- Supports a max cutting width of 1240 mm for large designs.
- Features a servo motor for smooth and quiet operation.
Product Description

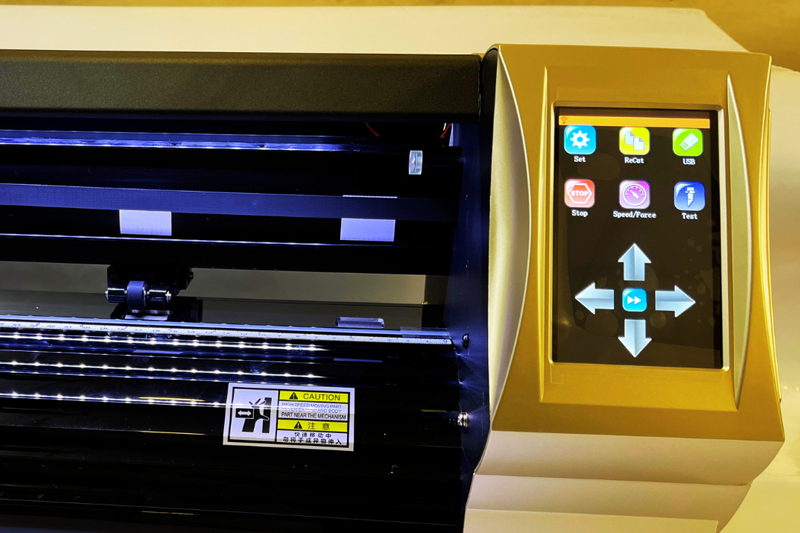

1. Comes with a large touch screen that is easy to use and command without any trouble from analog button systems.
2. Multi-supportive interface including USB, Wi-Fi (optional), hard drive, and cable connectivity — offering flexibility to connect the cutting plotter with a computer or PC.
3. Provides a powerful 2000G cutting force, allowing it to handle various materials like vinyl, cardstock, and EVC foam.
4. Multi-functional support includes multi-language UI and multi-color LED lighting for enhanced night-time visibility.
Specifications
| Product | SKYCUT VH-48 |
|---|---|
| Max Media Width | 1350mm |
| Max Cutting Width | 1240mm |
| Motor | Servo |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Moving Speed | 1200 mm/s |
| Max Cutting Speed | 1100 mm/s |
| Max Force | 2000g |
| Connector Interface | U-disk / WIFI (Optional) / USB Cable |
| Power | < 100W |
| Working Environment | +5°C - +35°C |
| Packing Size | 1920×360×388mm |
| Packing Gross Weight | appx 39kg |
Product Uses
Cutting Blades
We offer a variety of blade angles—30°, 45°, and 60°—to suit different types of cutting needs, from fine details to thick or large materials.
Creasing Tools
All Skycut products come equipped with essential cables, including USB cables, power cables, and adapters, tailored to each model’s power requirements and specifications.
Multi-function Cables
Creasing tools can be used with the VH series, allowing for added functionality when needed, even though the machine features a single head.
Drawing Pen Kit with Mat
Skycut provides a drawing pen kit along with a cutting mat to ensure better grip and precise cutting. The VH series includes one drawing pen and a cutting mat for enhanced functionality.
