Skycut VH-60 Servo Motor
- Cuts with up to 2000 g force, perfect for radium and retro films.
- Offers cutting speeds up to 1200 mm/s for fast production.
- Delivers ±0.01 mm precision for clean, accurate results.
- Supports a max cutting width of 1540 mm for large designs.
- Features a servo motor for smooth and quiet operation.
Product Description

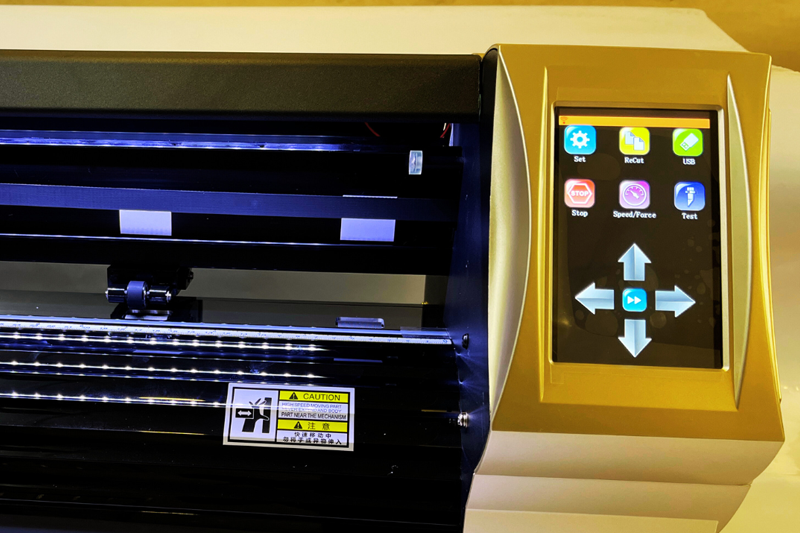

Equipped with a large, full-color touchscreen display, offering an intuitive interface for quick settings, operation control, and real-time job tracking.
For long-lasting durability, this wide-format cutting plotter features a robust, industrial-grade metal body.
The SKYCUT VH-60 delivers a powerful cutting force of up to 2000g, making it ideal for a wide range of materials including vinyl, cardstock, sticker sheets, visiting cards, and radium (retro) films.
Advanced usability features like multi-language support and multi-color LED indicators, enhancing visibility in low-light environments and improving workflow clarity.
Specifications
| Product | SKYCUT VH-60 |
|---|---|
| Max Media Width | 1650mm |
| Max Cutting Width | 1540mm |
| Motor | Servo |
| Cutting Precision | 0.01mm |
| Repeat Precision | 0.082mm |
| Max Moving Speed | 1200 mm/s |
| Max Cutting Speed | 1200 mm/s |
| Max Force | 2000g |
| Connector Interface | U-disk / WIFI (Optional) / USB Cable |
| Power | < 100W |
| Working Environment | +5°C - +35°C |
| Packing Size | 730×330×330mm |
| Packing Gross Weight | appx 50kg |
Product Uses
Cutting Blades
We provide various angle of blades based on various type of cutter from small to large, basically we provide the blades range in 30°, 45°, 60°.
Creasing Tools
For especially V series which works with Dual head function needs creasing tools for separate functioning and working purposes.
Multi-function Cables
All products of Skycut come with cables like USB cables, power cables, and adapters tailored to individual product and cutter power capacity.
Drawing Pen Kit with Mat
Skycut provides a drawing pen kit and cutting mat for better gripping and cutting purposes. The D series comes with 2 drawing pens and a cutting mat.
